SPECIFICATIONS

Brand Name: DT&ZM

Origin: Mainland China

Certification: CCC

Item Type: BALL

LED Chip Model: SMD2835

Voltage: AC220V

Color Temperature: Cold white 6500K/Warm White 3500K

Average Life (hrs): 50000

Item Type: LED Bulbs

Warranty: 3years

LED Chip Brand: Epistar

Power: 10W/20W/30W/50W/100W

Aluminum substrate thickness: 1mm (0.06inch)

Led Application: Led Floodlight Replace Chip

Suitable For: DIY LED Flood light

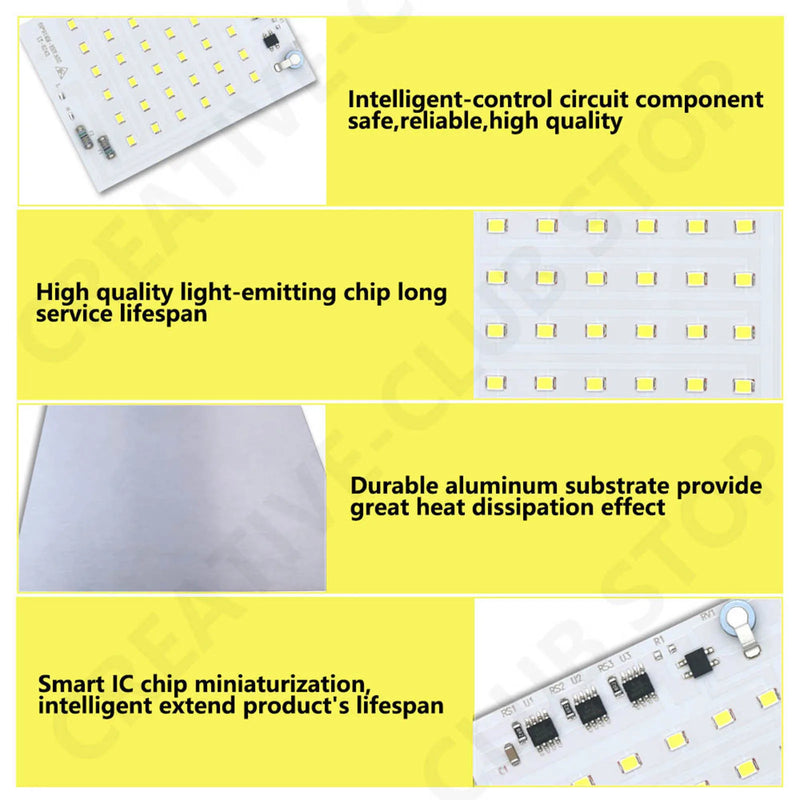

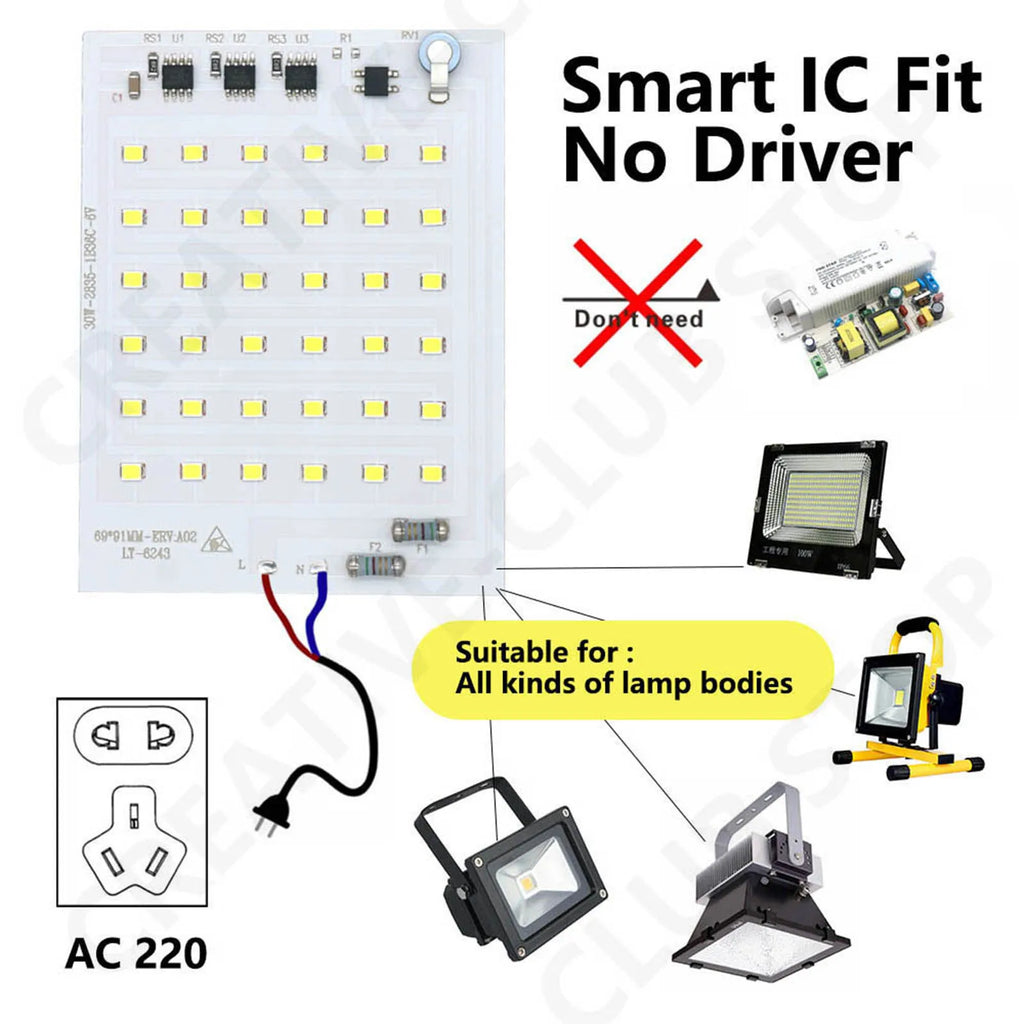

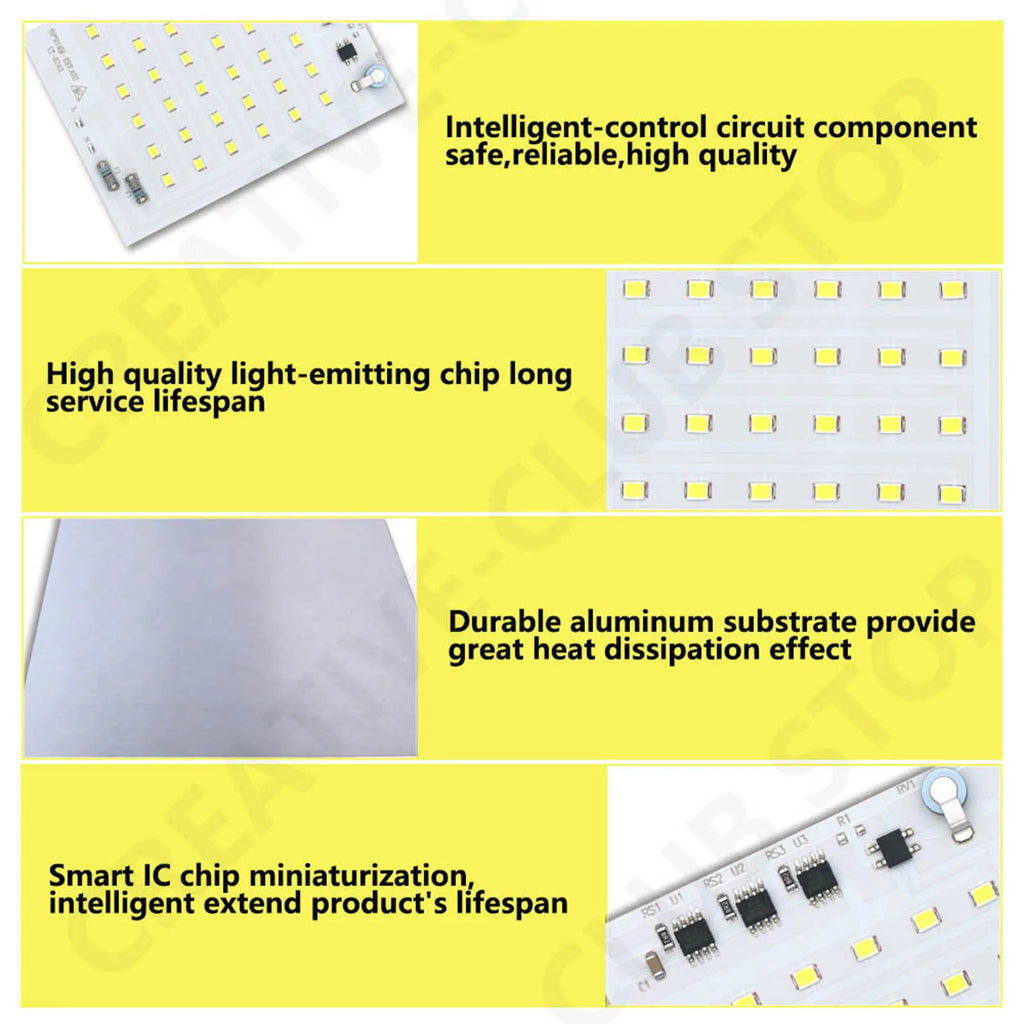

Feature: No Driver / Smart IC / Easy to DIY

Crystal name: Epistar chip

Thermal conductivity of aluminum substrate: 2.0W/(m.K)

Occasion: Garden/Square/Highway

Led Bulb: Led Spotlight

Crystal size: 15*30mil

Choice: yes

semi_Choice: yes

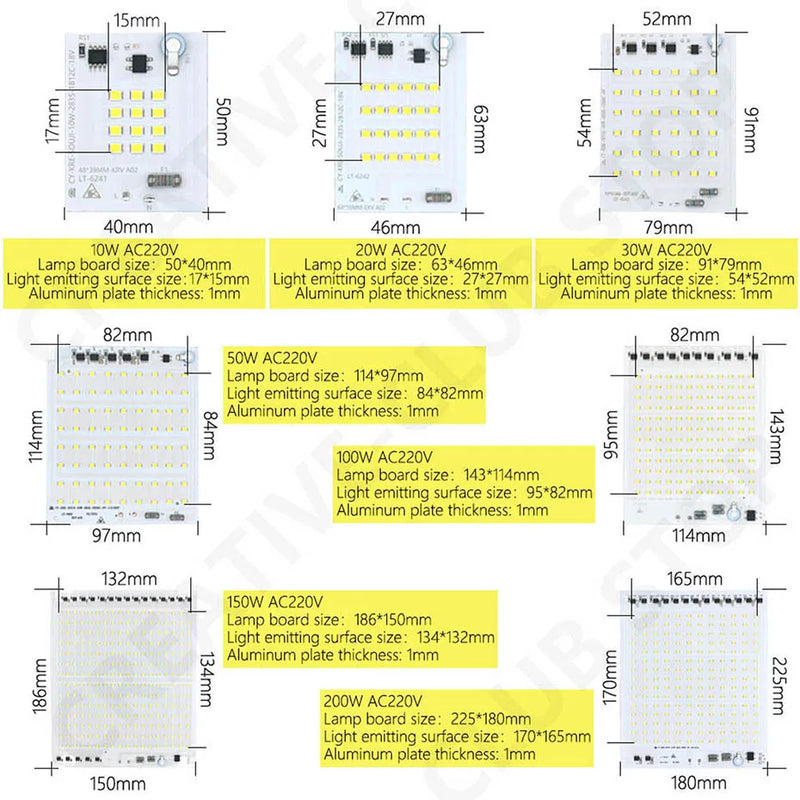

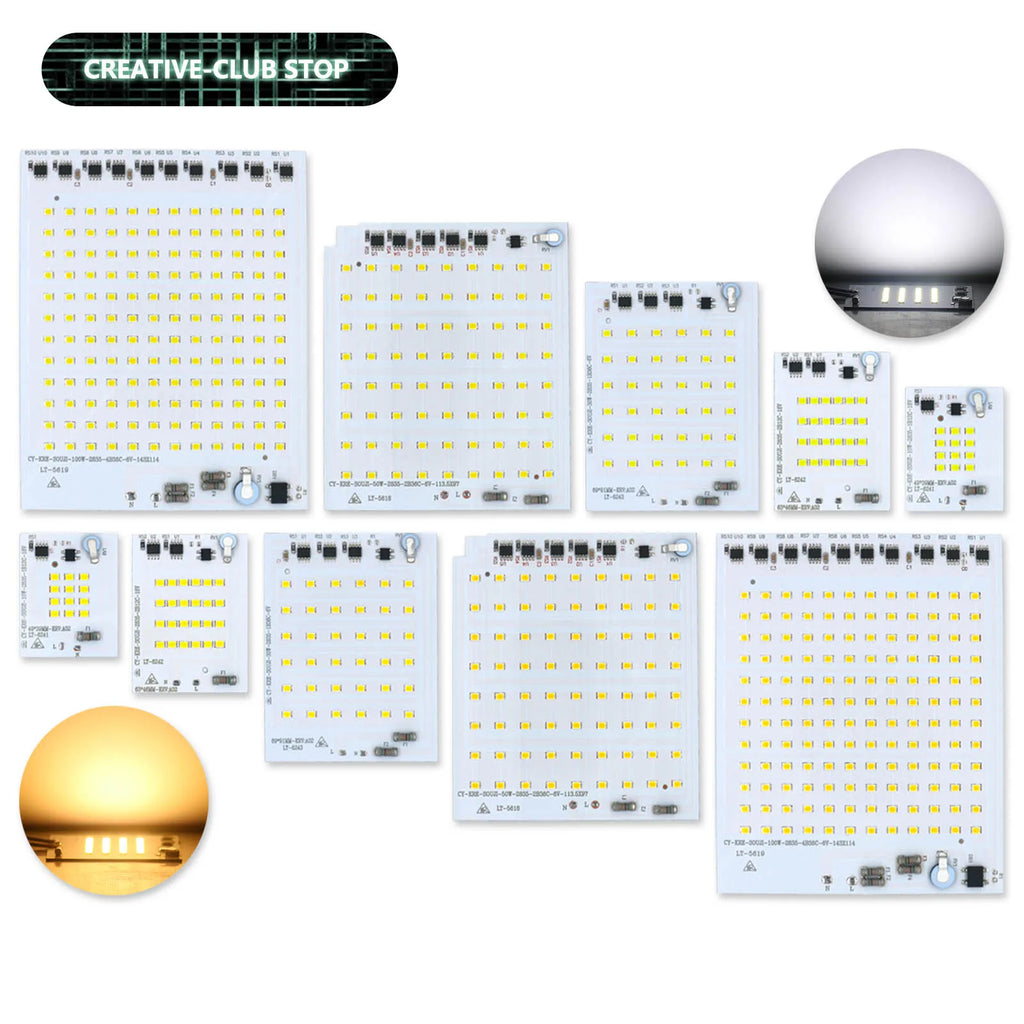

Product details

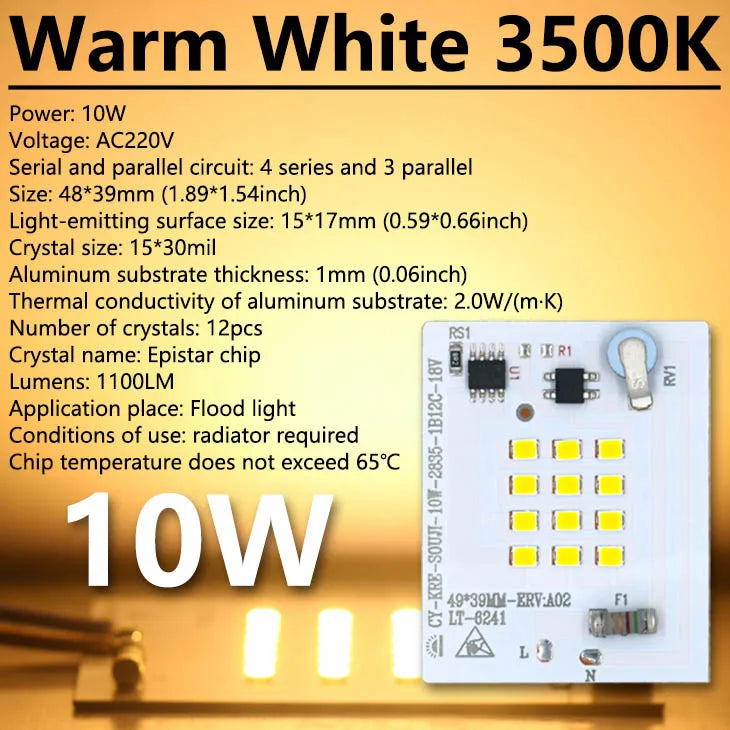

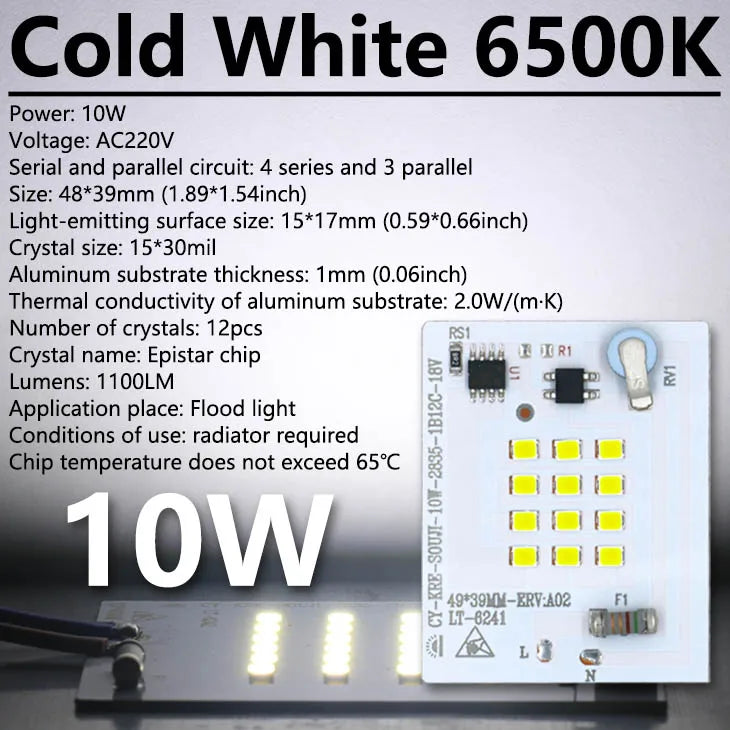

Power: 10W

Voltage: AC220V

Serial and parallel circuit: 4 series and 3 parallel

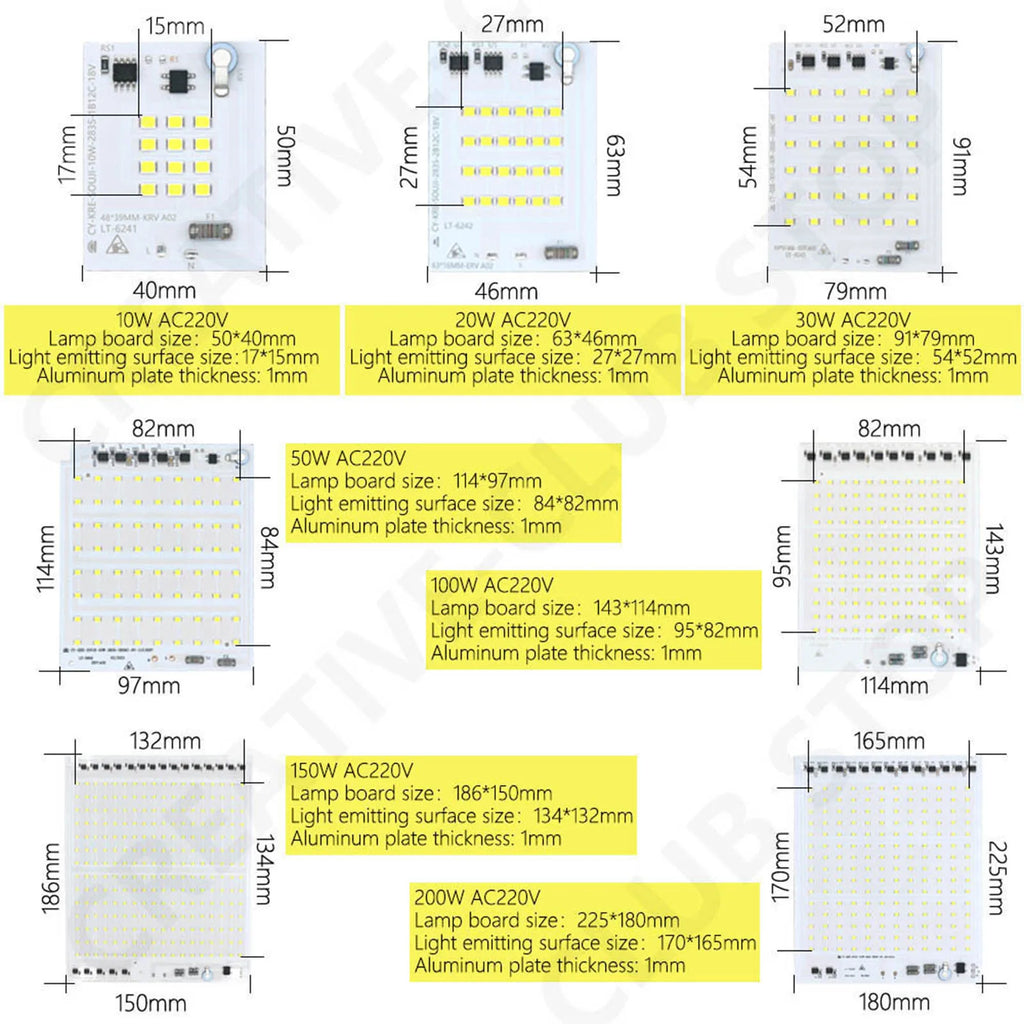

Size: 50*40mm (1.96*1.57inch)

Light-emitting surface size: 15*17mm (0.59*0.66inch)

Number of crystals: 12pcs

Lumens: 1100LM

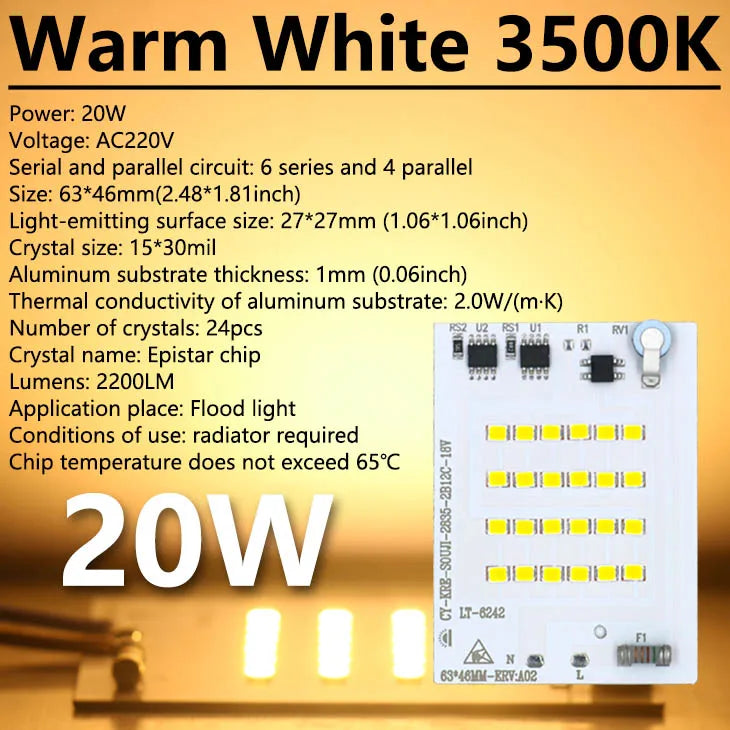

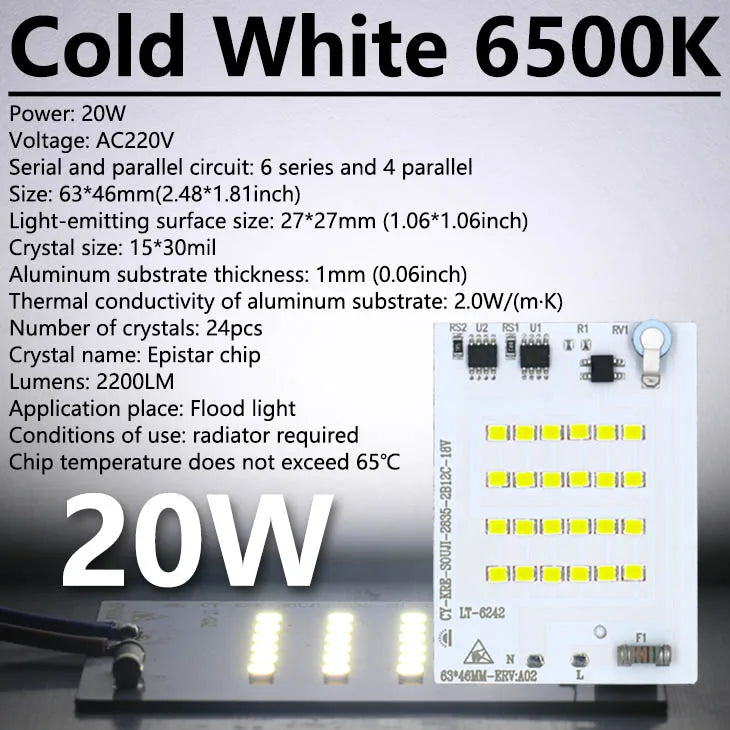

Power: 20W

Voltage: AC220V

Serial and parallel circuit: 6 series and 4 parallel

Size: 63*46mm(2.48*1.81inch)

Light-emitting surface size: 27*27mm (1.06*1.06inch)

Number of crystals: 24pcs

Lumens: 2200LM

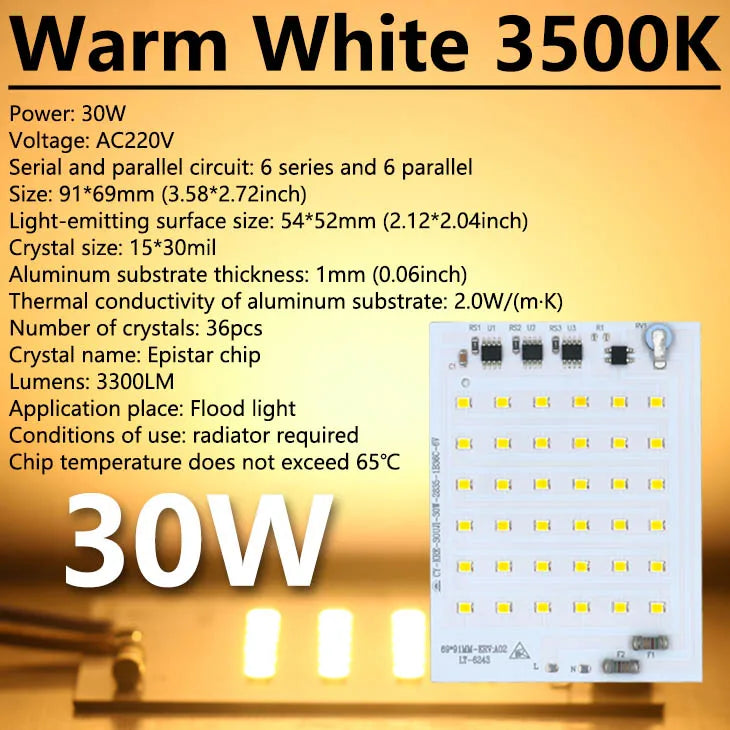

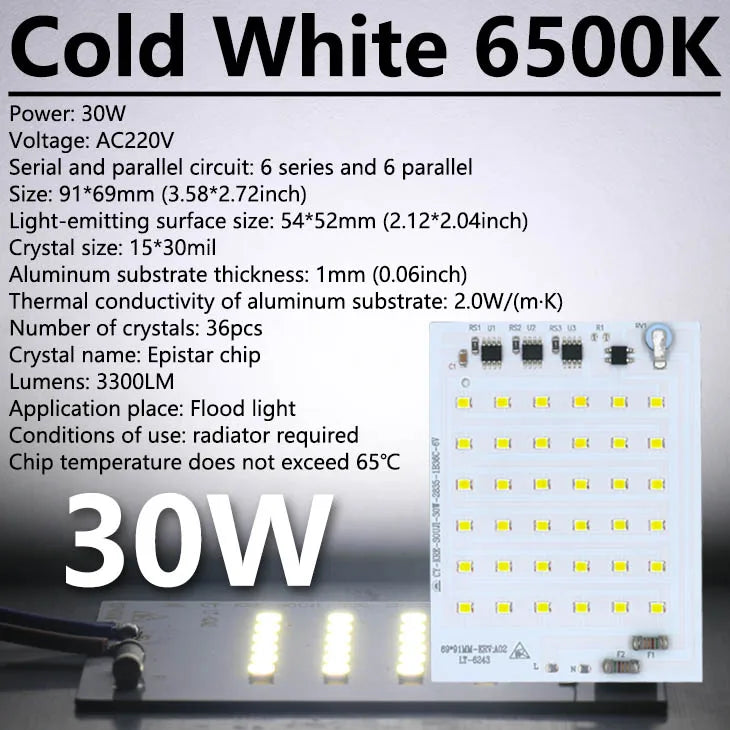

Power: 30W

Voltage: AC220V

Serial and parallel circuit: 6 series and 6 parallel

Size: 91*79mm (3.58*3.11inch)

Light-emitting surface size: 54*52mm (2.12*2.04inch)

Number of crystals: 36pcs

Lumens: 3300LM

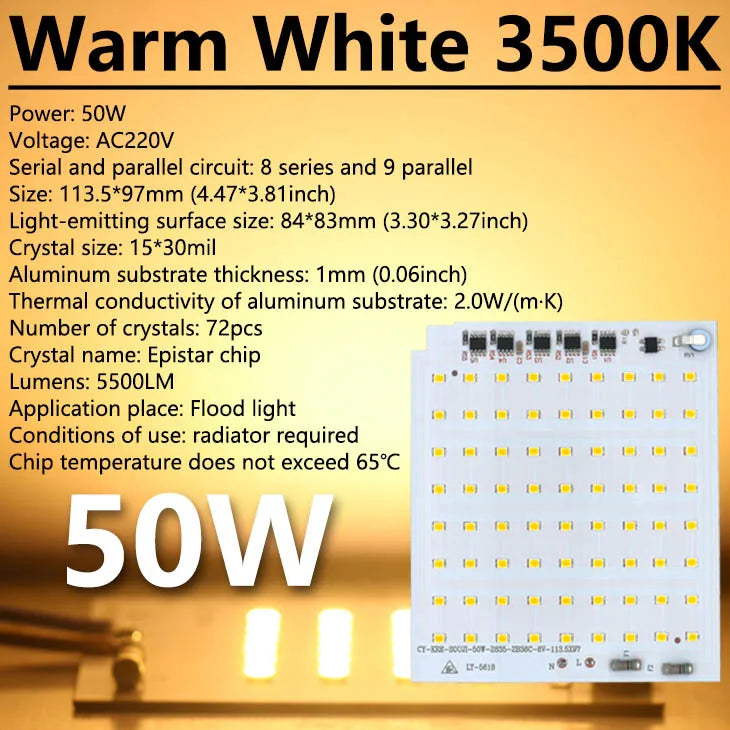

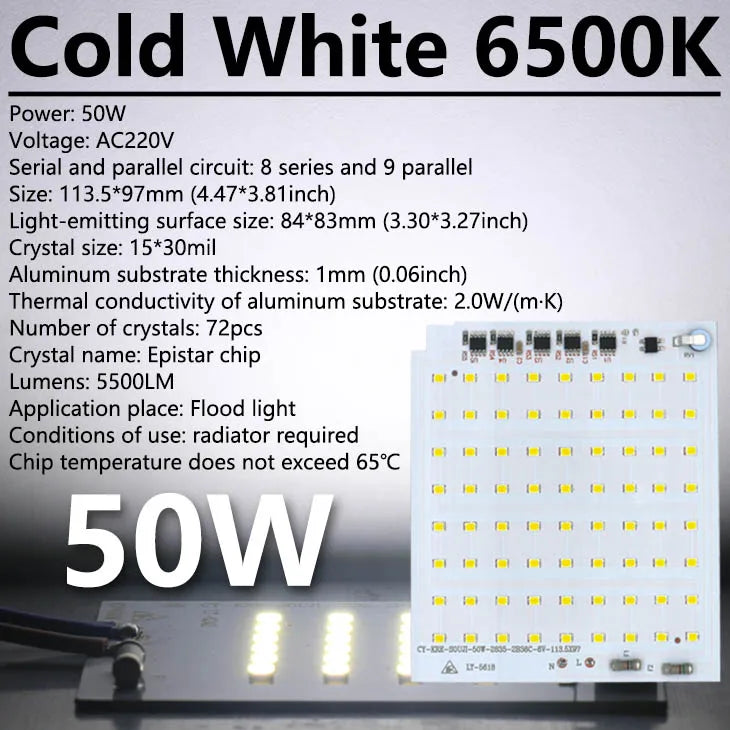

Power: 50W

Voltage: AC220V

Serial and parallel circuit: 8 series and 9 parallel

Size: 114*97mm (4.48*3.81inch)

Light-emitting surface size: 84*82mm (3.30*3.22inch)

Number of crystals: 72pcs

Lumens: 5500LM

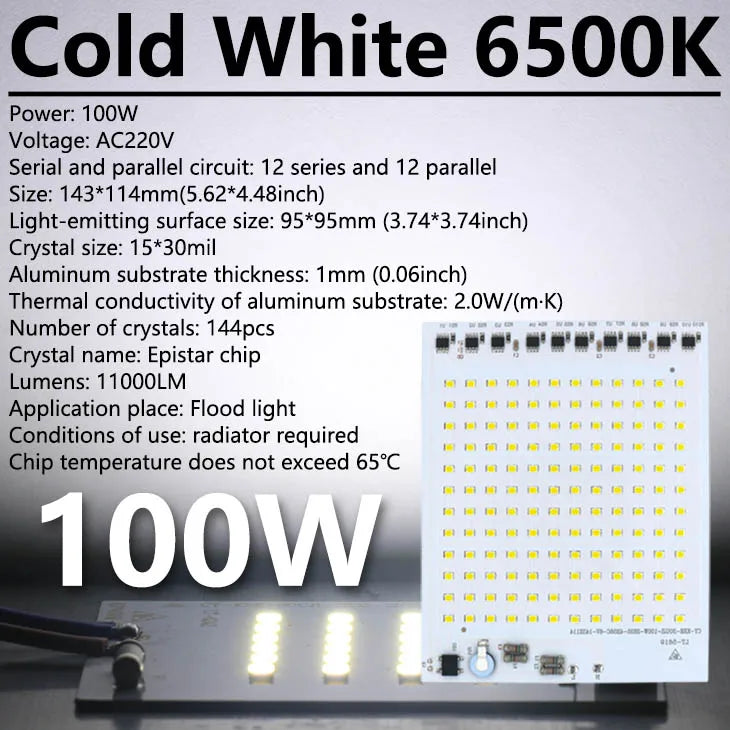

Power: 100W

Voltage: AC220V

Serial and parallel circuit: 12 series and 12 parallel

Size: 143*114mm(5.62*4.48inch)

Light-emitting surface size: 95*82mm (3.74*3.22inch)

Number of crystals: 144pcs

Lumens: 11000LM

Crystal size: 15*30mil

Crystal name: Epistar chip

Aluminum substrate thickness: 1mm (0.06inch)

Thermal conductivity of aluminum substrate: 2.0W/(m·K)

Application place: Flood light

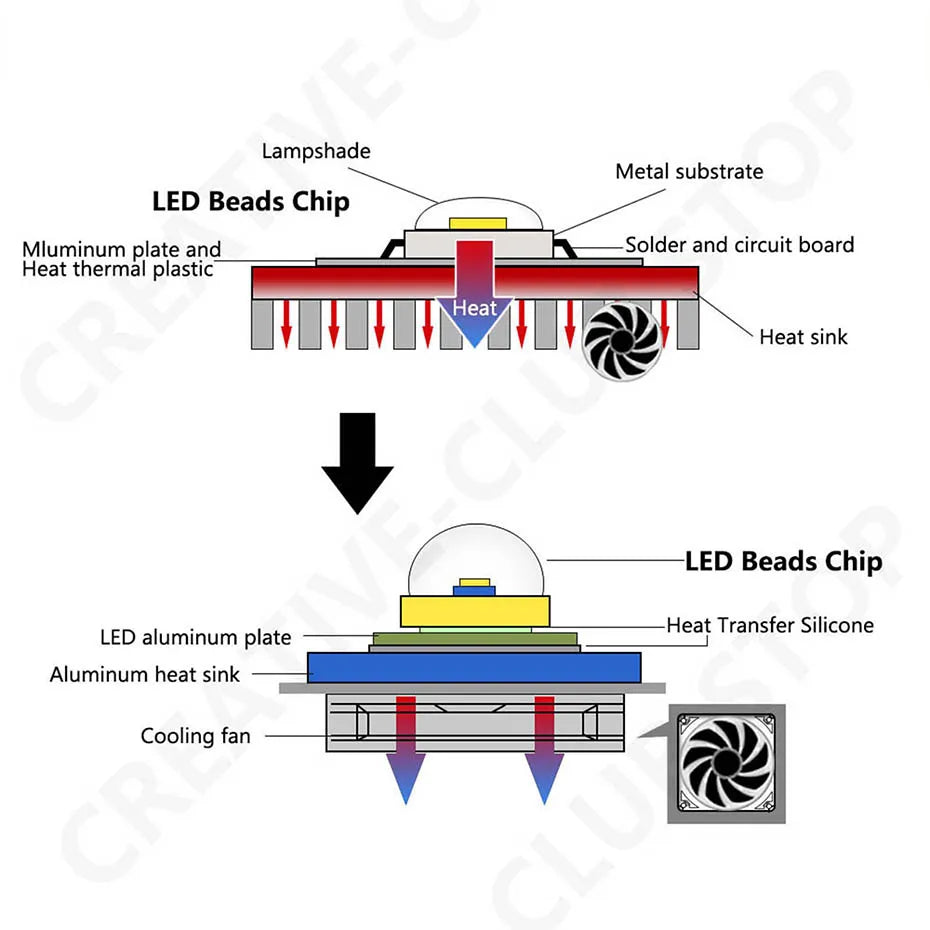

Conditions of use: radiator required

Chip temperature does not exceed 65℃
